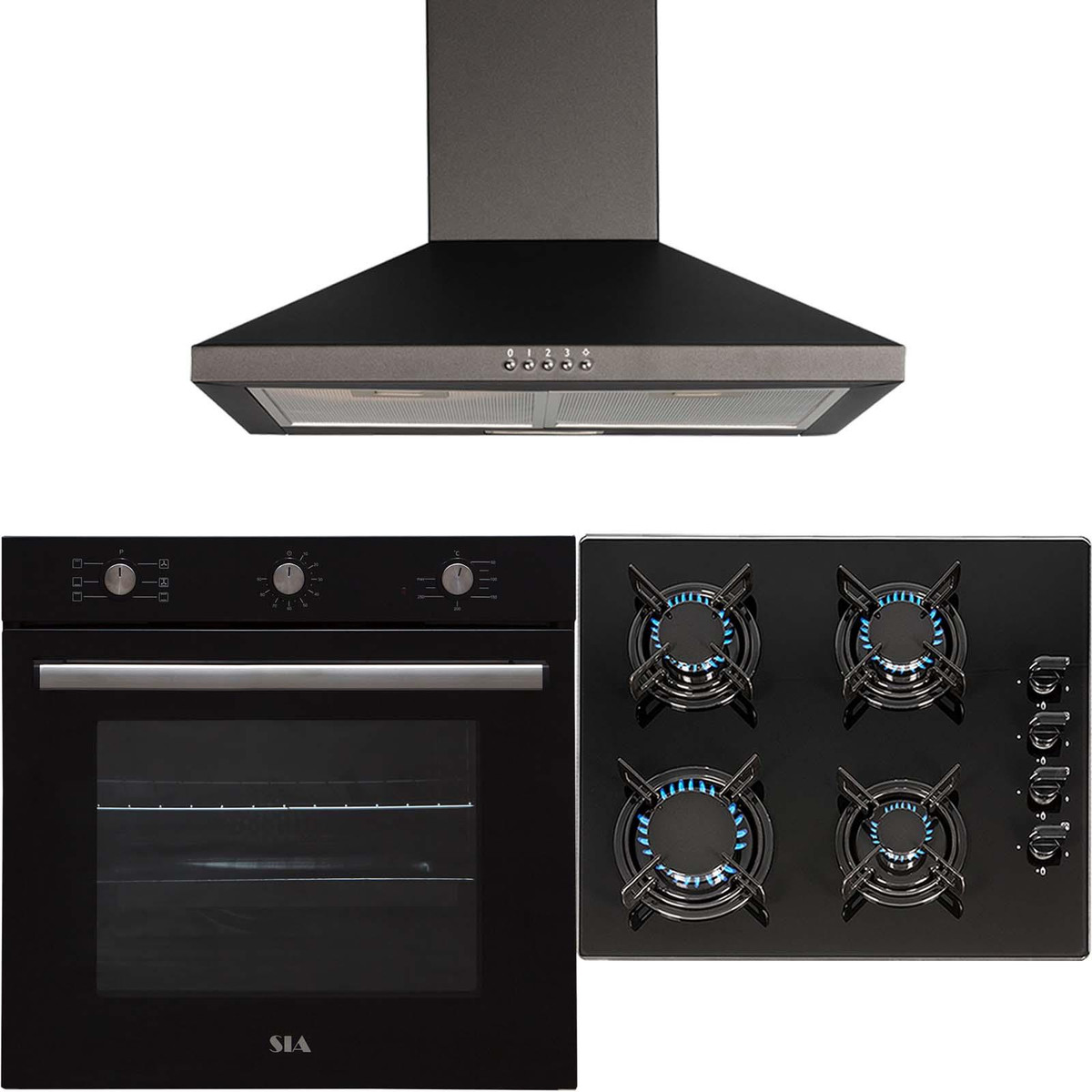

SIA 60cm Black Single Fan Oven, 4 Burner Gas On Glass Hob & Chimney Cooker Hood

The FSO10BL-GHG612BL-CHL60BL pack from SIA is a stylish yet functional, built-in single oven, 4 burner gas hob and chimney cooker hood. The simple dial controls make using the appliances a piece of cake and the built-in oven can be mounted under a worktop or at eye level, so it can match any kitchen style. These appliances have been chosen to complement each others design and fit into any modern kitchen.

The GHG612BL features a flame failure safety device (FFD), which stops the flow of gas when a flame goes out, preventing gas leaks. The LPG conversion kit is a set of small brass jets that allow you to convert the hob to use bottled butane or propane, if you do not have access to a natural gas connection.

The CHL60BL cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.

SIA FSO10BL 60cm Black 71L Capacity Built-in 6 Function Electric Single Fan Oven

Features

Main colour: black
Removable door
Internal light
Multi-function
Oven type: fan assisted
Mechanical Timer

Technical Specifications

Installation type: built-in and built-under
Temperature range (ºC): 50-300
Power (kW): 2.2
Net capacity (L): 71
Energy class: A
Fuse rating (A): 10 (can be used with a plug)
Product dimensions (mm): W595 x D566 x H595
Number of shelves: 1
Number of oven trays: 1
Guarantee: 1 year
This product comes with a cable & (13A) Plug

SIA GHG612BL 60cm Black 4 Burner Gas On Glass Hob With Enamel Pan Stands

Features

Side dial controls
Enamel pan stands and burner caps
Flame failure safety device
LPG conversion kit included
Easy clean glass surface
Automatic ignition

Burners

Front left burner – rapid (kW): 3.0
Rear left burner – semi-rapid (kW): 1.75
Front right burner – auxiliary (kW): 1.0
Rear right burner – semi-rapid (kW): 1.75

Technical Specifications

Nominal power (kW): 7.5
Fuse rating (A): 3
Product dimensions (mm): W580 x D500
Cut-out dimensions (mm): W557 x D477
Net / gross weight (kg): 9.5 / 11.0
Mains lead length (m): 1 (UK standard plug supplied)
Gas inlet: ½ inch male threaded connection
Guarantee: 5 year parts & 2 year labour upon registration
Please note this appliance must be installed by a Gas Safe engineer.

SIA CHL60BL 60cm Pyramid Chimney Cooker Hood Kitchen Extractor Fan In Black

Features

3 variable speeds
Push button controls
1 x 1.5W LED light
Single fan motor
Ducted or re-circulated installation
2 x dishwasher safe aluminium grease filters
2 x telescopic chimney sections

Optional Accessories

SIA2 re-circulation filters available to buy from our store
D5 & D7 external ducting kits available to buy from our store

Fitting Notes

Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over electric hob (mm): 650

Technical Specification

Ducting outlet diameter (mm): 150
Extraction rate (m³/hr): 400
Noise level (dBa): 66
Fuse rating (A): 3
Product dimensions (mm): W600 x D450 x H610-760
Height of chimney sections (mm): 330 + 330
Net / gross weight (kg): 9.0 / 11.0
Power (W): 26.5
Mains lead length (m): 1
Guarantee: 5 year parts & 2 year labour upon registration
Please note that there is no plug supplied with this product
