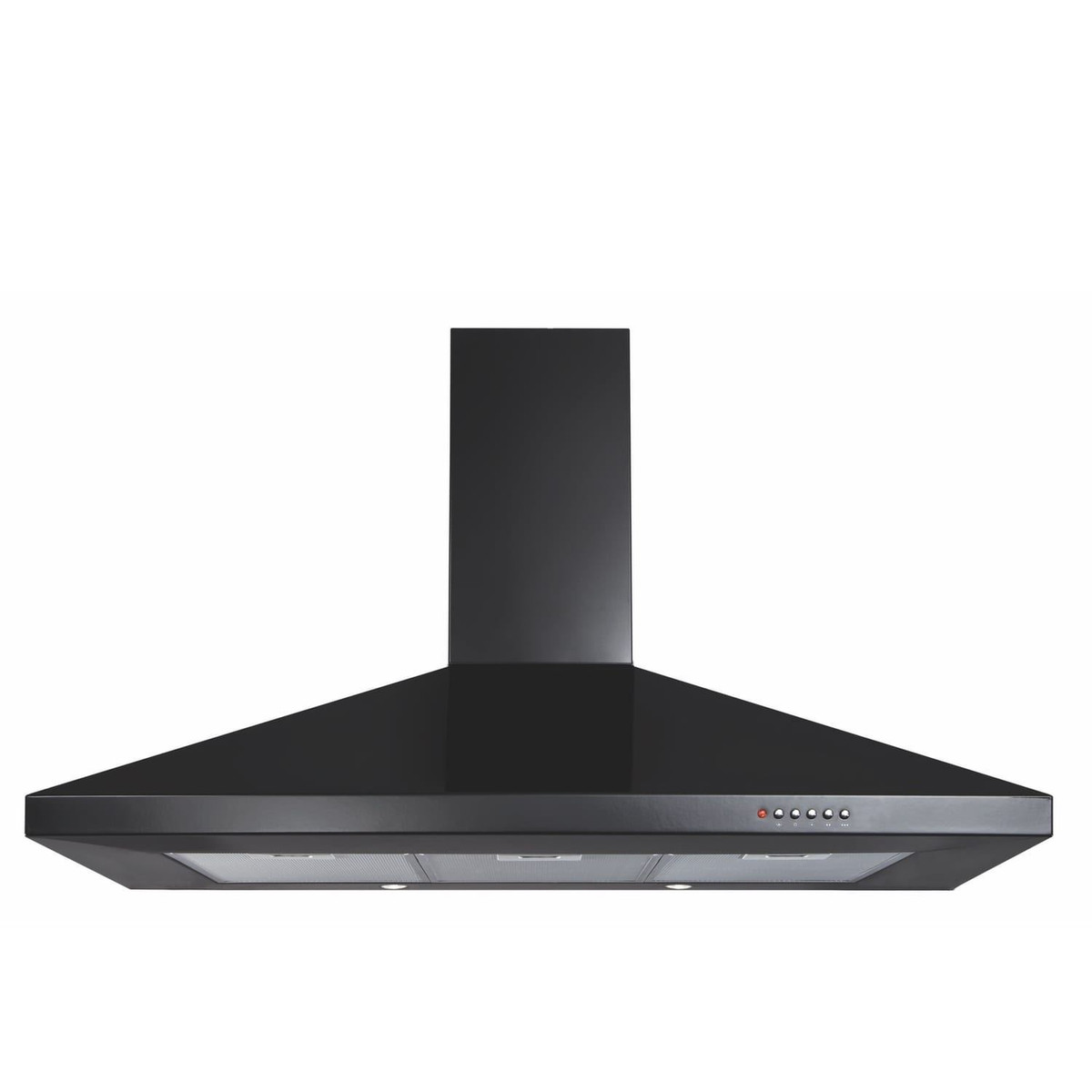

CDA ECH103BL 100cm Black 3 Speed Chimney Cooker Hood Kitchen Extractor Fan

The CDA ECH103BL is a 100cm black chimney cooker hood that packs a real punch. It has 3 speed settings to suit different levels of cooking and has 2 LED downlights to illuminate your hob. Due to its large size and 3 washable grease filters it is the perfect choice to place above a range cooker.

This cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.

As a CDA appliance you get a fantastic 5 Years Parts & 2 Years Labour Guarantee* so you can be sure the appliance will last for years to come.

Features

3 variable speeds
Push button controls
2 x 3W LED lights
Twin fan motor
Ducted or re-circulated installation
3 x dishwasher safe aluminium grease filters
2 x telescopic chimney sections

Optional Accessories

CDA CHA24 re-circulation charcoal filters available from our store
CDA AED61, AED63 & AED64 external ducting kits available from our store

Fitting Notes

Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Minimum required height over gas hob (mm): 600
Minimum required height over electric hob (mm): 700
Please note that if the hob manual states the clearance must be greater than the above, this will override these instructions.

Technical Specifications

Ducting outlet diameter (mm): 150
Extraction rate (m3/hr): 427
Noise level (dBa): 64
Fuse rating (A): 3
Product dimensions (mm): W1000 x D500 x H820-1020
Power (W): 146

Please note that there is no plug supplied with this product.
*Guarantee subject to registration within 30 days of purchase.
